Barcelona Pavilion

The Barcelona Pavilion project was an exercise in using handwork to create a set of drafts that could be used to describe the layout of walls and spaces within
the Barcelona Pavilion in Spain. The drafts included a plan view, cross sections, and spatial analysis diagrams as well as a hand rendering of a particular view
within the site.

Plan View

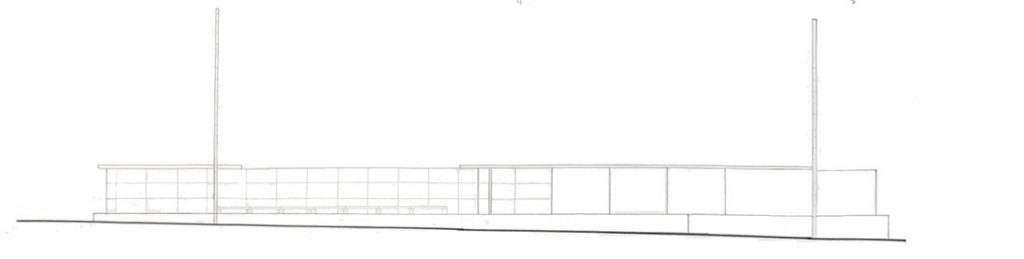

Section facing North

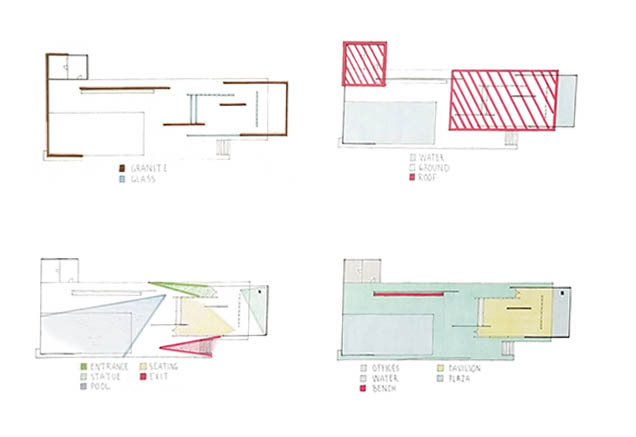

Flow diagrams examining vertical planes, shade, views, and spaces.
Ink and marker view of the statue.
